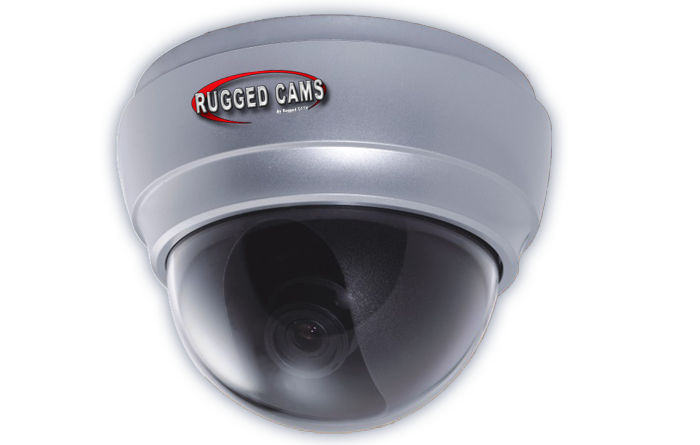

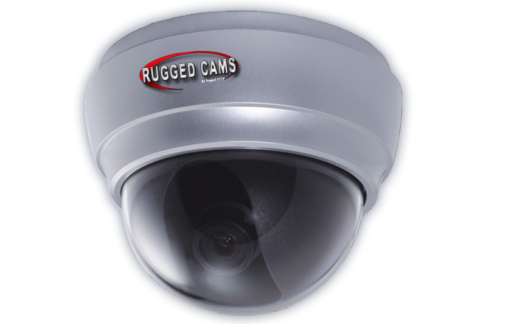

Introducing – The lowest priced completely submersible dome camera on the market to date. There is no other IP68 camera out there for this price. True Innovation at an Outstanding Price!
Some security cameras claim to be waterproof, but most are only water resistant. The Neptune Dome Security Camera is not only waterproof and dustproof, but can be submerged with no water incursion. It can even be washed down with a pressure washer.
The Neptune can be mounted on boats, ships, docks, car washes, waterparks, trains, trucks or anywhere you find wet or wash-down environments. Made of durable ABS plastic, the Neptune Dome Camera won’t rust or corrode – even in salt water environments.
The Neptune Dome Camera can withstand a wide variety of environments as well. Rated down to 14 degrees and up to 122 degrees, this camera can handle many challenging environments.
This is truly a ruggedized security camera, and deserves to wear the “Rugged Marine” badge.
FEATURES:
- Super High Resolution – 580 lines.
- Sony’s 1/3” Super HAD Day/Night Camera with the NextChip DSP (Digital Signal Processor).
- 4-9mm Auto-Iris Varifocal Zoom Lens.
- Zoom Lens adjustments make zooming and focusing quick and easy.
- Equipped with Automatic Gain Control (AGC), Automatic White Balance (AWB), and Backlight Compensation (BLC) functions are all built-in and fully automatic
- Ceiling mount only
- The Neptune Dome Camera is certified to IP68 standards and also has CE, FCC and RoHS certification
Power Consumption
120mA
Maximum Distance for 12v DC over standard 18/2 power wire for the Neptune Dome Camera is 750′ feet
Neptune Dome Specifications
| Image sensor | 1/3″ Sony Super HAD Color CCD |
| Effective Pixels | NTSC : 768(H) x 494(V), PAL : 752(H) x 582(V) |
| H. Resolution | 580TV Lines |
| Synchronizing system | Internal |
| Scanning system | Interlaced |
| Video output | 1.0Vp-p Composite 75 Ohms |
| S/N ratio | More than 48dB (AGC Off) |
| Min. Illumination | 0.5Lux / F1.2 |
| Shutter Speed | 1/60 (1/50) to 1/10,000 sec |
| Gamma Correction | 0.45 |
| White Balance | ATW |
| Gain Control | Auto |
| Operating temp./Humidity | -14°F ~ 122°F |
| Power source | 12VDC |
| Operating current | 120mA/12VDC |
| Lens | 4 – 4mm Manual Varifocal Auto Iris lens |
| Iris Control | AES |
| IP Rating | IP68 |

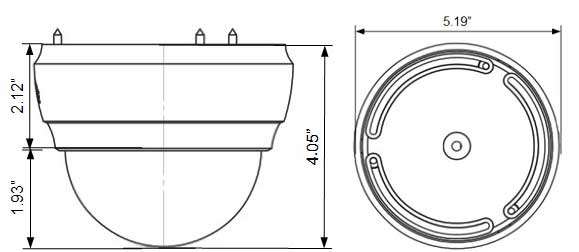

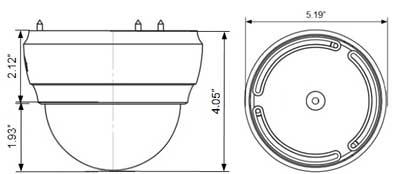

| Measurement | 5.19″(D) x 4.05″(H) |
| Weight | 1 lbs. |
WARNING!!
If connecting this camera to a boat or vehicle charging system use the 12V DC Voltage Regulatorto prevent over voltage and VOIDING the camera warranty!

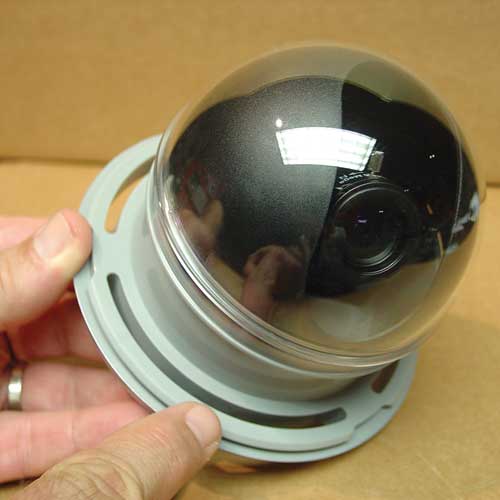

Neptune Inside Housing

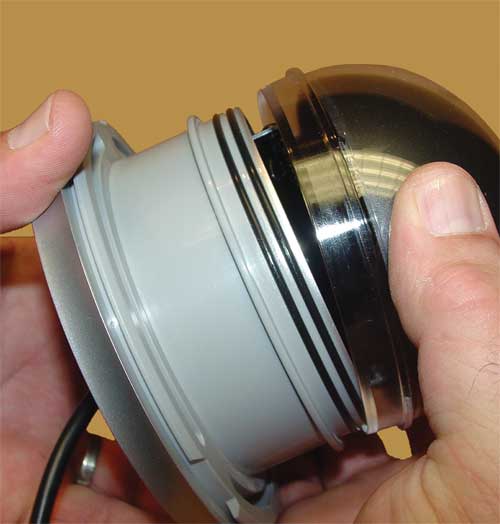

Neptune Oring Seals

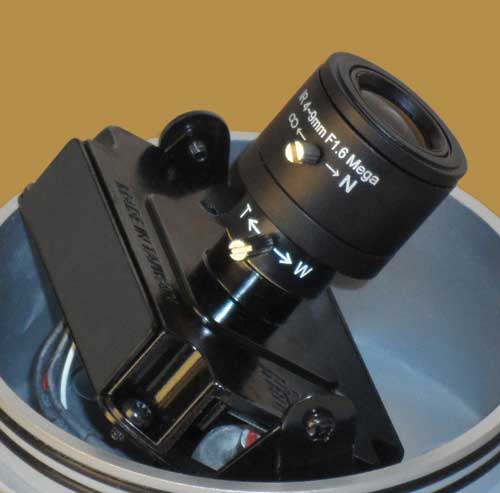

Lens & Adjustment
