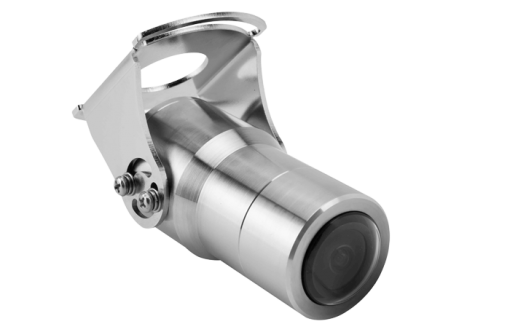

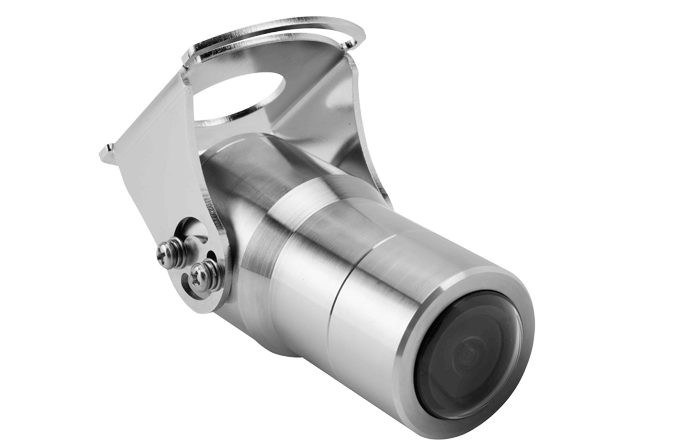

The new Stronghold-MP HD-TVI (Multi-Purpose) camera can be used as a backup camera on vehicles and vessels, and comes with a detachable Menu keypad that allows you to customize almost any setting and feature for optimum performance – and also allows you to mirror image or even flip the picture upside down if needed.
We have jacked the resolution up to an incredible 1080p (½.8″ Sony Exmor CMOS – Low Illumination model).
This Marine HD Camera is perfectly designed for a wide range of industrial applications as well as Marine such as construction vehicles, truck and marine industry. The high grade 316 Stainless steel that we use to make this camera, is not only salt and rust resistant, but is also anti germ, so it can be safely used in the food processing industry as well.
The 2.5mm lens gives you a wide 150 degree field of view, and the small compact size will fit nearly anywhere you need it to go.
Installation / Technical
Information
Power Consumption
0.350 mA
Maximum Distance over standard 18/2 power
wire is
265′ feet
Camera Video/Power Connection
Click for larger image
Stronghold – MP HD-TVI
| Image Sensor | 1/2.8″ Sony Exmor CMOS |
| Resolution | 1080p |
| Scanning System | Progressive |
| S/N Ratio | more than 50db (AGC off) |
| Min. Illumination | Color: 1.0 LUX, B&W: 0.5 LUX |
| D-WDR | Off/0-8 |
| SENS-UP | Off/X2 – X30 |
| Backlight | Off/BLC/HSBLC |
| DNR | Off/Low/Middle/High |
| Privacy Mask | 4 Masks. |
| Motion Detection | Off/On |
| Video Output | Universal TVI, CVI, AHD: 1080p , 720p |
| Lens | Fixed 2.5mm lens (170°) |
| Power Source | 12V DC ± 10% |
| Power Consumption | 4.0 Watt / .350 mA |
| Operating Temp. | -4°F – 140 °F |
| Dimensions | 1.93″ Diameter x 4.50 Length |
| Weight | 1.46 lbs. |
