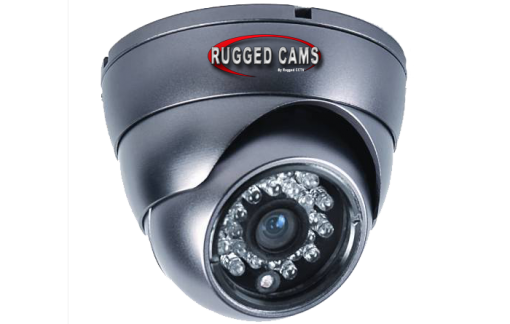

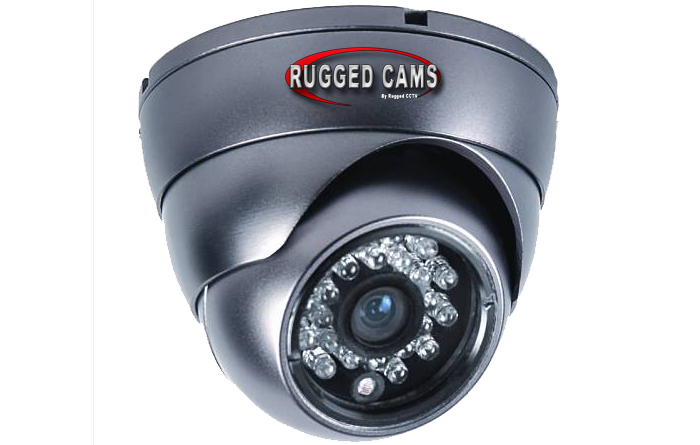

The I700 HD-TVI is an advanced version Infrared dome Security Camera that has 1080p resolution and an On-Screen-Display (OSD).
Rugged Marine has built this camera with several SONY chipsets, and the I700 HD-TVI is our latest generation with a whole array of improvements.
The On-Screen-Display (OSD) is a fantastic improvement because now you get all the features and program-ability that the high-end cameras normally have – at a fraction of the price. The On-Screen-Display allows you to change almost any parameter and modify any feature or disable it entirely – all using a joystick found at the end of the cable (which is extra long to insure you can penetrate any wall thickness so that you have access to the joystick and connectors).
Here are just a few of the OSD Menu items that are programmable: Language (English, Korean, Chinese, German, French, Spanish, Portuguese, Russian), Shutter Speed, White Balance, Auto Gain Control, , Backlight types such as Highlight Masking, Mirror function (in case you are using it as a backup camera), Brightness, Contrast, Sharpness, Hue, Gain, Motion Detection, privacy blocking, Noise Reduction, Camera ID and even a Reset function to revert back to our Factory Defaults we have set.
The I700 HD-TVI has 24 Infrared LED’s that will project infrared lighting out to as much as 50-60′ on a dark night. The Day/Night feature will turn on automatically at dusk and off at dawn via the built-in daylight sensor. So this camera gives you true color and excellent clarity during the daytime, and turns to a black & white picture with infrared lighting at night. AND – separate glass panes on the front of the camera helps to eliminate any glow from the Infrared LED’s from being seen in the picture.
Electrostatic Discharge (ESD) Protection – protects against shorts and stray voltage spikes from unreliable power supplies or nearby lightning strikes (up to 5000 Volts).
(And It Also Carries Our Exclusive 2-Year Warranty)
Camera Video/Power Connection
110mA (Infrareds off)
450mA (Infrareds on)
Maximum Distance for 12v DC over standard 18/2 power wire for the I700 HD-TVI Camera is 230′ feet
I700 HD-TVI Specifications
Image Sensor | Sony 1/3” CMOS IR-CUT |
Total Pixels | NTSC: 1920 xx 1080p |
Resolution | 2.0 megapixel HD-TVI |
Sync System | 2.1 Interlace |
Scanning Frequency | “NTSC: 15.625KHz(H), 50Hz(V) “ |
Video Connection | BNCe |
Min Illumination | 0 LUX |
S/N Ratio | >52db (AGC OFF) |
Electronic Shutter | Auto:NTSC 1/50 – 1/100,000sec |
LED Life | >10,000 Hours |
Lens | 3.6mm lens |
Gamma Correction | Y =0.45 |
Auto Gain Control | Auto |
Video Output | 1.0 Vp-p Composite (75Ω) |
Operation Temperature | 14°F to 122°F |
Storage Temperature | -4°F to 140°F |
Power | DC12V (+-10%) |
Power Consumption | 280mA |
WARNING!!
If connecting this camera to a boat or vehicle charging system use the 12V DC Voltage Regulatorto prevent over voltage and VOIDING the camera warranty!
