Stronghold – MP/IR Auto TVI
Multi-Purpose Megapixel-HD Stainless Steel Infrared Camera
HD-1080p TVI models
With Motorized Zoom & Menu Control from the DVR
Rugged Marine has always been the go-to source for Stainless Steel Cameras. We are constantly improving and updating these rugged cameras, and they are in use at thousands of Food Processing Plants, Factories, Chemical Processing Facilities, Marine Vessels and anywhere you find a challenging environment.

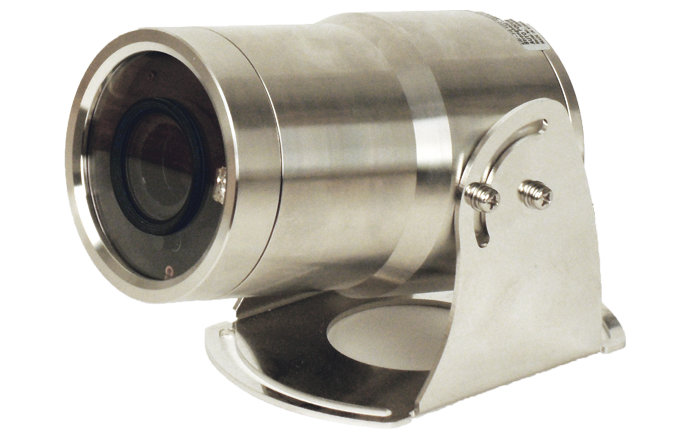

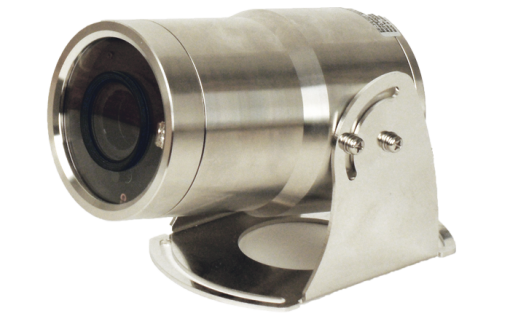

The latest Stainless Steel Camera from Rugged Marine is the StrongHold MP/IR Stainless Steel Multi-Purpose Camera. This High Definition 1080p camera can be used as a Mobile camera or fixed mounted camera with Motorized Zoom Control from the DVR, a Smart Phone or even a Tablet.
The Heart of this Rugged Camera is a 1/3” Panasonic 2.2 Megapixel Progressive Scan Image Sensor that can deliver 1080p or 720p HD Color Video, as well as Black & White with Infrared Light at night.
The StrongHold MP/IR also delivers Infrared Lighting at night via 2 High Power Pearl LED Modules that can illuminate an area out to greater than 75 feet.
The best part of this camera is the 2.8-12mm Motorized Auto-Focus Zoom Lens that can be controlled from anywhere via your DVR.
See the Specs for more detailed information, and see the entire family of StrongHold Stainless Steel Cameras from Rugged Cams. We make many models, including White Light Illumination.
Installation / Technical Information
Power Consumption
0.340 amp
Maximum Distance over standard 18/2 power wire is 275′ feet
Stronghold – MP/IR Auto TVI
Image Sensor | 1/3″ Panasonic CMOS |
Resolution | 1080p |
Scanning system | Progressive |
Video Output | 1080p, 720p, Analog: NTSC/PAL CVBS |
Waterproof Rating | IP68 |
S/N Ratio | more than 50db (AGC off) |
Min. Illumination | Color: 1.0 Lux, BW:0.5Lux. Color DSS: 0.002 LUX, BW DSS: 0.0008LUX |
D-WDR | Off/0-8 |
SENS-UP | Off/X2-X30 |
Privacy Mask | 4 Masks |
Backlight | Off/BLC/HSBLC |
DNR | Off/Low/Middle/High |
Motion Detection | Off/On |
Power Source | 12v DC +-10% |
Lens | Motorized 2.8 – 12mm, Megapixel |
Power Consumption | 4.0 Watt / 0.340 amps |
Operating Temp. | 14°F – 122 °F |
Dimensions | 3.00″ Diameter x 6.25 Length x 4.75 Height |
Weight | 4.51 lbs. |
WARNING!!
If connecting this camera to a boat or vehicle charging system use the 12V DC Voltage Regulatorto prevent over voltage and VOIDING the camera warranty!
Camera Dimensions
