DC Voltage Converter / Regulator

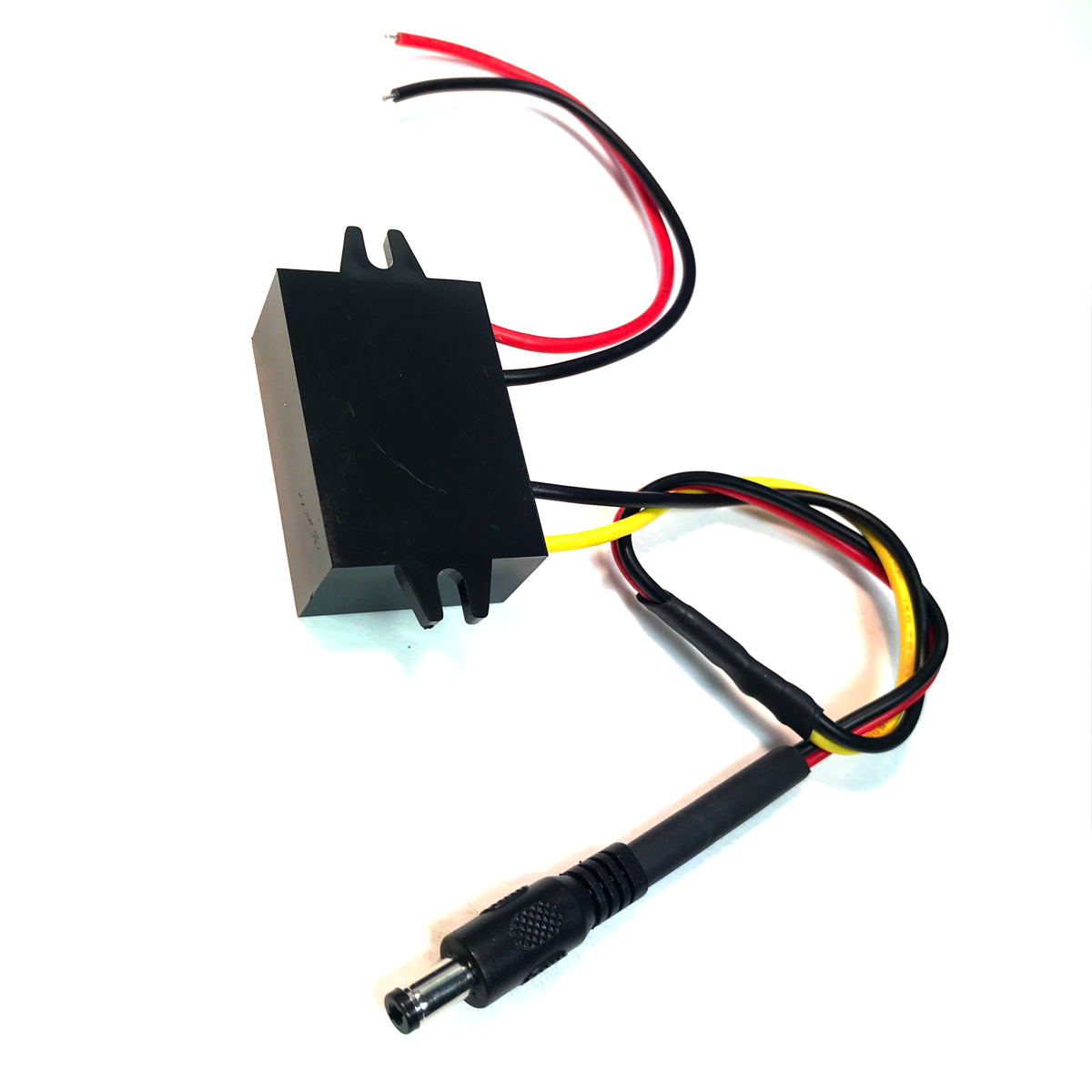

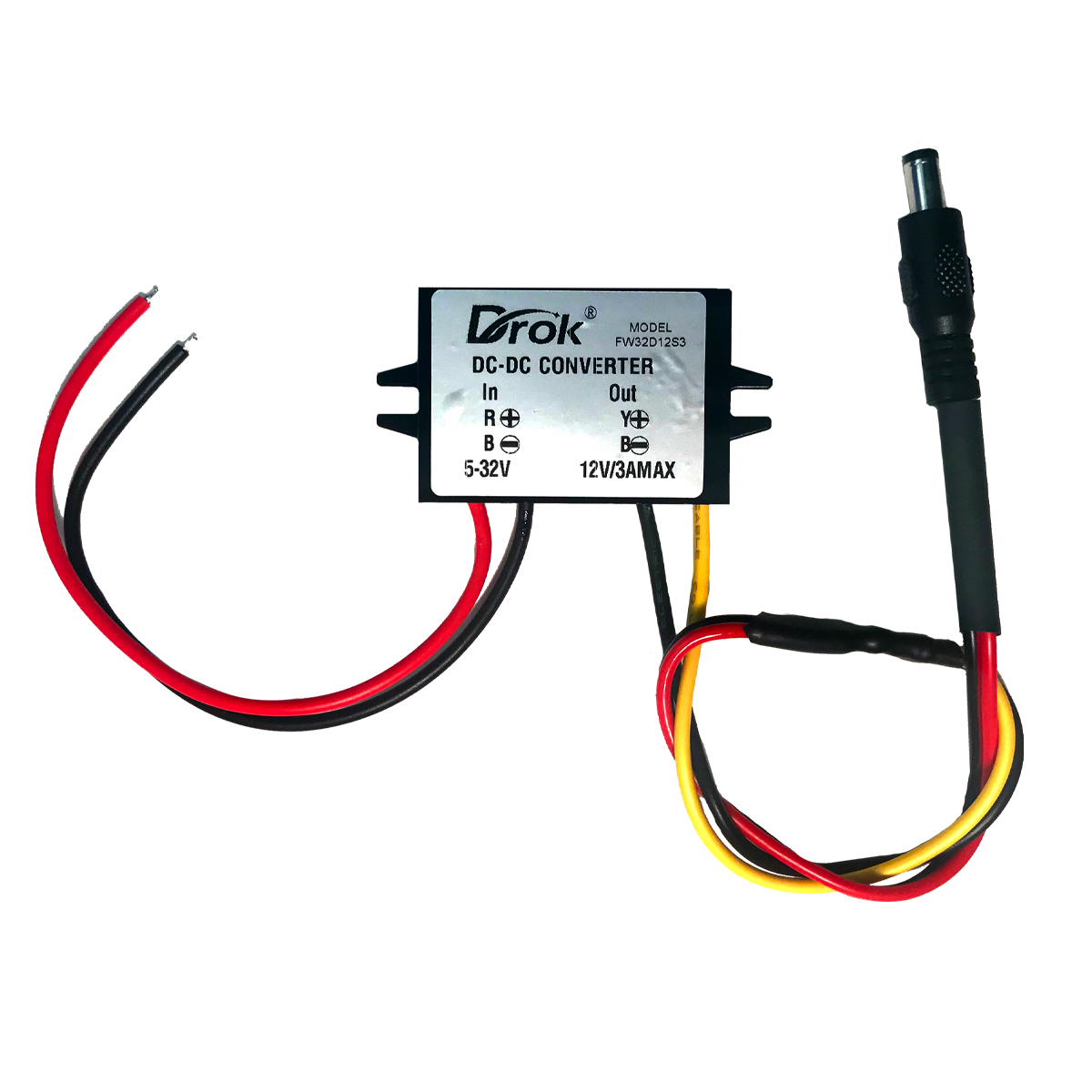

This is a DC-DC Power Supply Converter Buck Module, voltage range 5-32V to 12V, output power 36W

How is this a Converter and a Regulator?

This awesome little device will convert lower voltages into a steady 12V and regulate higher voltages up to 32V down to a steady 12V output!

What is this used for?

Some equipment is less tolerant to variable or fluctuating voltages. Having this DC Voltage Converter / Regulator helps stabilize your electrical current and ensures a steady, reliable 12V security system without risk of damaging your equipment.

Specifications:

• Module Properties: non-isolated buck module (BUCK)
• Rectification: synchronous rectification
• Minimum pressure: 2V
• Input voltage: DC 5V-32V
• Output voltage: 12V
• Output Current: 3A
• Output Power: 36W
• Conversion efficiency: 90%
• Output ripple: 50mV (MAX) 20M-bandwidth
• Full load temperature rise: 50 ℃
• Load regulation: ± 1%
• Voltage regulation: ± 2%
• Dynamic response speed: 5% 200uS
• Operating Temperature: Industrial (-40°c to +85°c) ( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)

Features:

• Overcurrent protection
• Short-circuit protection
• Input Reverse Polarity Protection: None (Please Series diode at the input port.)
• Waterproof design
• Waterproof full-potting
• Small size: 58x40x22mm
